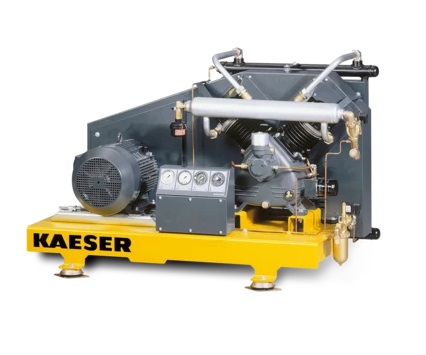

• N 253-G/N 351-G/N 502-G High Pressure Air Compressor Boosters
Your ticket to high-pressure performance

The N-series boosters are available with one, two or three cylinders and operate within the following performance parameters:
  • 3 - 60 hp
  • Initial pressure up to 190 psig - discharge pressure up to 650 psig
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

Item Name

Inlet Pressure

Outlet Pressure

Intake Volume

Web Price

Add To Cart/Request Quote
N/A N 502-G Model 110 Cubic Feet Per Minute (ft³/min) Intake Volume Standard Version High Pressure Air Compressor Booster N/A 75 psig N/A 360 psig N/A 110 ft³/min QUOTE Add To Cart
Request Quote
N/A N 502-G Model 152 Cubic Feet Per Minute (ft³/min) Intake Volume Standard Version High Pressure Air Compressor Booster N/A 110 psig N/A 360 psig N/A 152 ft³/min QUOTE Add To Cart
Request Quote
N/A N 502-G Model 152 Cubic Feet Per Minute (ft³/min) Intake Volume Standard Version High Pressure Air Compressor Booster N/A 110 psig N/A 500 psig N/A 152 ft³/min QUOTE Add To Cart
Request Quote
N/A N 502-G Model 194 Cubic Feet Per Minute (ft³/min) Intake Volume Standard Version High Pressure Air Compressor Booster N/A 145 psig N/A 360 psig N/A 194 ft³/min QUOTE Add To Cart
Request Quote
N/A N 502-G Model 194 Cubic Feet Per Minute (ft³/min) Intake Volume Standard Version High Pressure Air Compressor Booster N/A 145 psig N/A 500 psig N/A 194 ft³/min QUOTE Add To Cart
Request Quote
N/A N 502-G Model 194 Cubic Feet Per Minute (ft³/min) Intake Volume Standard Version High Pressure Air Compressor Booster N/A 145 psig N/A 650 psig N/A 194 ft³/min QUOTE Add To Cart
Request Quote
N/A N 502-G Model 247 Cubic Feet Per Minute (ft³/min) Intake Volume Standard Version High Pressure Air Compressor Booster N/A 190 psig N/A 500 psig N/A 247 ft³/min QUOTE Add To Cart
Request Quote
N/A N 502-G Model 247 Cubic Feet Per Minute (ft³/min) Intake Volume Standard Version High Pressure Air Compressor Booster N/A 190 psig N/A 650 psig N/A 247 ft³/min QUOTE Add To Cart
Request Quote
