Compressed Air Wall Manifolds On Compressed Air Systems, Inc.

Compressed Air Piping
Kaeser's SmartPipe+™ is a modular compressed air distribution system that offers both lower installation costs and lower long term operating costs.

Piping selection directly affects the three key elements of every compressed air system: flow, pressure, and air quality. Poor choices in pipe materials, diameter, and layout cause flow restrictions, often resulting in significant pressure drop. Pressure drop is a leading cause of increased energy consumption and under-performing air driven tools and equipment.

1 - 2 of 2 | Results Per Page | View | Unit of Measure

Request Information Compare Items

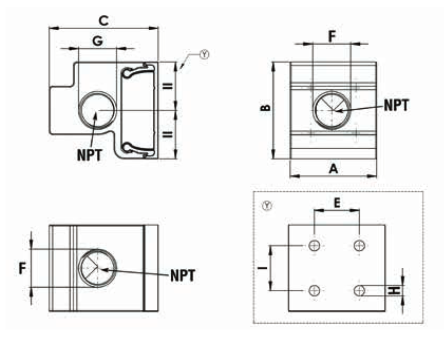

Item #	Item Name	Brands	Connection Size	Connection Type	Dimension B	Dimension C	Dimension E	Dimension F	Connection F Type	Dimension G	Connection G Type	Dimension H	Dimension I	Weight	Maximum Working Pressure	Maximum Working Temperature	Storage Temperature	Maximum Vacuum	Note for Pressure and Temperature Ranges	Warranty	Applications	Aluminum Pipe Specification	Aluminum Fittings Specification	Flexible Hose Specification	Material Information	Material	Black Iron Material Advantages	Black Iron Material Disadvantages	Galvanized Iron Material Advantages	Galvanized Iron Material Disadvantages	Copper Material Advantages	Copper Material Disadvantages	Stainless Steel Material Advantages	Stainless Steel Material Disadvantages	Polyvinyl Chloride (PVC) Material Advantages	Polyvinyl Chloride (PVC) Material Disadvantages	Aluminum Material Advantages	Aluminum Material Disadvantages	Certification	Benefits	SmartPipe™ Scope of Supply	Easy Installation	Other Features	Web Price	Add To Cart/Request Quote

AN8984406904	N/A 2 Inch (in) Dimension A Compressed Air Wall Manifold	N/A Kaeser Compressors	N/A 3/4 x 1/2 in	N/A National Pipe Thread (NPT)	N/A 2-3/16 in	N/A 2.5 in	N/A 1 in	N/A 1/2 in	N/A National Pipe Thread (NPT)	N/A 3/4 in	N/A National Pipe Thread (NPT)	N/A 1/4 in	N/A 1 in	N/A 0.4 lb	N/A 16 bar232 psig	N/A -30 to 120 ºC-22 to 248 ºF	N/A -40 to 212 ºF	N/A 29.5 inHg98.3 %	N/A Consult factory for higher pressures or temperatures.	N/A 10 years	N/A Compressed Air	N/A 6063-T5 aluminum grade Extruded pipe conforms to standards EN755.2 and EN755.8 Smooth bore ID for optimal flow rate performance Powder coat in BLUE (RAL5012) with QUALICOAT CERTIFIED lacquer finish exterior Consult factory for availability of other colors	N/A Connector bodies manufactured in aluminum alloy ASTM B26-356.0 Nuts are aluminum alloy per ASTM B241-6061 and anodized Nut threads meet ANSI B1.20.1 standard Fitting bodies are black cataphoresis coated with a minimum thickness of 10 mm	N/A Resistant to mineral and synthetic oils Maximum working pressure varies depending on size Fire resistance testing conducted per the ISO 8030:2014 standard	N/A Piping selection directly affects the three key elements of every compressed air system: flow, pressure and air quality. Choices in piping also directly impact installation costs. The table below outlines some of the main advantages and disadvantages of each of the most common options.	N/A Aluminum Black Iron Copper Galvanized Iron Polyvinyl Chloride (PVC) Stainless Steel	N/A Moderate material costs Available in multiple sizes	N/A Labor intensive installation May rust and leak Rough inside promotes contaminant build-up and creates pressure drop	N/A Moderate material costs Available in multiple sizes Some rust protection	N/A Often only exterior is coated Labor intensive installation Rough inside promotes contaminant build-up and creates pressure drop May rust at joints and leak	N/A No rust; good air quality Smooth interior - low pressure drop	N/A Requires quality brazing to prevent leaks Susceptible to thermal cycling Installation requires open flame	N/A No rust, good air quality Smooth interior - low pressure drop	N/A Labor intensive installation Expensive materials	N/A Lightweight Inexpensive	N/A Lower safety In certain areas, not compliant with some codes Carries static charge Subject to bursting Adhesives not compatible with compressor oils	N/A Corrosion resistant Lightweight Easy to install Lower cost of ownership	N/A Limited pressure ratings Material costs	N/A SmartPipe+™ meets the requirement of ASME B31.1 which stipulates the minimum requirements for the design, materials, fabrication, installation, test, and inspection of power and auxiliary piping systems for industrial plants. SmartPipe+™ also meets ASME B31.3 and B31.9. SmartPipe+™ also conforms to European standard 2014/68/EU regarding equipment under pressure. Kaeser warrants its SmartPipe+™ products to be free of defects in material and workmanship for a period of ten (10) years from the date of purchase of the products. QUALICOAT certification is a guarantee of the quality of the lacquer finish applied to the SmartPipe+™ aluminum pipe.	N/A Installs faster than other common piping No specialized trades needed No threading, welding, or brazing pipe Simple mounting and connecting hardware Can connect to existing systems with other pipe types Easy to add on to or disassemble for your changing needs Compression style valves and fittings 2 1/2" and below Bolt-on style fittings 3" and above	N/A SmartPipe™ is available in nine sizes from 3/4" to 8" and is perfect for use as headers, branch lines, and drops to point of use. The SmartPipe™ line includes all the accessories you need for a top quality installation: Straight unions Elbows and tees Cross connectors Reducing fittings Gooseneck drops Ball valves Quick assembly brackets and hangers Snap-shut pipe clips Expansion and flex hoses Variety of ISO 4414/EN983 compliant safety couplers	N/A Fast to install and easy to modify, Kaeser SmartPipe™ is the most versatile compressed air distribution system available. Our combination of lightweight materials and connectors dramatically reduce labor and installation time, especially in overhead installations.	N/A Installs faster than other common piping No specialized trades needed No threading, welding, or brazing pipe Simple mounting and connecting hardware Can connect to existing systems with other pipe types Easy to add on to or disassemble for your changing needs	QUOTE	Add To Cart Request Quote
AN8984706904	N/A 6-1/16 Inch (in) Dimension A Compressed Air Wall Manifold	N/A Kaeser Compressors	N/A 3/4 x 1/2 in	N/A National Pipe Thread (NPT)	N/A 2-3/16 in	N/A 2.5 in	N/A 1 in	N/A 1/2 in	N/A National Pipe Thread (NPT)	N/A 3/4 in	N/A National Pipe Thread (NPT)	N/A 1/4 in	N/A 1 in	N/A 1.4 lb	N/A 16 bar232 psig	N/A -30 to 120 ºC-22 to 248 ºF	N/A -40 to 212 ºF	N/A 29.5 inHg98.3 %	N/A Consult factory for higher pressures or temperatures.	N/A 10 years	N/A Compressed Air	N/A 6063-T5 aluminum grade Extruded pipe conforms to standards EN755.2 and EN755.8 Smooth bore ID for optimal flow rate performance Powder coat in BLUE (RAL5012) with QUALICOAT CERTIFIED lacquer finish exterior Consult factory for availability of other colors	N/A Connector bodies manufactured in aluminum alloy ASTM B26-356.0 Nuts are aluminum alloy per ASTM B241-6061 and anodized Nut threads meet ANSI B1.20.1 standard Fitting bodies are black cataphoresis coated with a minimum thickness of 10 mm	N/A Resistant to mineral and synthetic oils Maximum working pressure varies depending on size Fire resistance testing conducted per the ISO 8030:2014 standard	N/A Piping selection directly affects the three key elements of every compressed air system: flow, pressure and air quality. Choices in piping also directly impact installation costs. The table below outlines some of the main advantages and disadvantages of each of the most common options.	N/A Aluminum Black Iron Copper Galvanized Iron Polyvinyl Chloride (PVC) Stainless Steel	N/A Moderate material costs Available in multiple sizes	N/A Labor intensive installation May rust and leak Rough inside promotes contaminant build-up and creates pressure drop	N/A Moderate material costs Available in multiple sizes Some rust protection	N/A Often only exterior is coated Labor intensive installation Rough inside promotes contaminant build-up and creates pressure drop May rust at joints and leak	N/A No rust; good air quality Smooth interior - low pressure drop	N/A Requires quality brazing to prevent leaks Susceptible to thermal cycling Installation requires open flame	N/A No rust, good air quality Smooth interior - low pressure drop	N/A Labor intensive installation Expensive materials	N/A Lightweight Inexpensive	N/A Lower safety In certain areas, not compliant with some codes Carries static charge Subject to bursting Adhesives not compatible with compressor oils	N/A Corrosion resistant Lightweight Easy to install Lower cost of ownership	N/A Limited pressure ratings Material costs	N/A SmartPipe+™ meets the requirement of ASME B31.1 which stipulates the minimum requirements for the design, materials, fabrication, installation, test, and inspection of power and auxiliary piping systems for industrial plants. SmartPipe+™ also meets ASME B31.3 and B31.9. SmartPipe+™ also conforms to European standard 2014/68/EU regarding equipment under pressure. Kaeser warrants its SmartPipe+™ products to be free of defects in material and workmanship for a period of ten (10) years from the date of purchase of the products. QUALICOAT certification is a guarantee of the quality of the lacquer finish applied to the SmartPipe+™ aluminum pipe.	N/A Installs faster than other common piping No specialized trades needed No threading, welding, or brazing pipe Simple mounting and connecting hardware Can connect to existing systems with other pipe types Easy to add on to or disassemble for your changing needs Compression style valves and fittings 2 1/2" and below Bolt-on style fittings 3" and above	N/A SmartPipe™ is available in nine sizes from 3/4" to 8" and is perfect for use as headers, branch lines, and drops to point of use. The SmartPipe™ line includes all the accessories you need for a top quality installation: Straight unions Elbows and tees Cross connectors Reducing fittings Gooseneck drops Ball valves Quick assembly brackets and hangers Snap-shut pipe clips Expansion and flex hoses Variety of ISO 4414/EN983 compliant safety couplers	N/A Fast to install and easy to modify, Kaeser SmartPipe™ is the most versatile compressed air distribution system available. Our combination of lightweight materials and connectors dramatically reduce labor and installation time, especially in overhead installations.	N/A Installs faster than other common piping No specialized trades needed No threading, welding, or brazing pipe Simple mounting and connecting hardware Can connect to existing systems with other pipe types Easy to add on to or disassemble for your changing needs	QUOTE	Add To Cart Request Quote
