Versatile

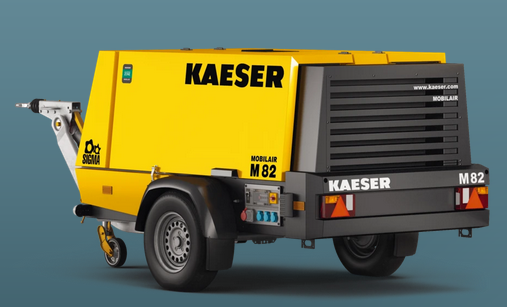

The Mobilair™ M82 portable rotary screw compressor delivers 295 cfm at 100 psig and is designed for heavy-duty civil and commercial construction, demolition, sand blasting, and other site work applications as well as portable backup for stationary units.
Unit of Measure

Financing

Approve Payments

 N/A Finance with Approve Payments

Specifications

Brands

 N/A Kaeser Compressors

Model

 N/A M82

Free Air Delivery at 100 Pound Per Square Inch Gauge (psig) Pressure

 N/A 295 ft³/min

Free Air Delivery at 145 Pound Per Square Inch Gauge (psig) Pressure

 N/A 240 ft³/min

Free Air Delivery at 175 Pound Per Square Inch Gauge (psig) Pressure

 N/A 215 ft³/min

Free Air Delivery at 205 Pound Per Square Inch Gauge (psig) Pressure

 N/A 195 ft³/min

Maximum Sound Level at 23 Feet (ft)

 N/A 76 dBA

Flow Rate

 N/A 295 ft³/min

Working Pressure

 N/A 100 psig

Optional Airend Warranty

 N/A 5 years

Diesel Engine

Make

 N/A Kubota V3307-CR-T Tier 4 Final

Power at Full Load

 N/A 73 hp

Full Load Speed

 N/A 2400 rpm

Off Load Running Speed

 N/A 1900 rpm

Package

Fuel Tank Capacity

 N/A 37 gal

Outlets

 N/A 1 x 1-1/2 in3 x 3/4 in

Weight

 N/A 3437 lb

Dimensions

Length

 N/A 160 in

Width

 N/A 71 in

Height

 N/A 60 in

Standard Features

Standard Features

 N/A
  • Sigma Profile™ rotary screw airend produces more air with less horsepower.
  • Heavy-duty 4-cylinder Kubota diesel engine meets Tier 4 Final EPA emissions standards.
  • Sigma Control Smart electronic controller.
  • Large fuel tank for up to 10 hours of continuous operation.
  • Powder-coated steel cabinet.
  • High capacity cold start battery ensures reliable operation.
  • Anti-frost valve

Optional Features

Optional Features

 N/A
  • Aftercooler package
  • Pressures up to 205 psig
  • Skid mount

Advantages

Advantages

 N/A
  • Easy maintenance:
    Large, wide-opening enclosure doors for easy access to all components
  • Eco-friendly:
    "Low Emission Zone Mobilair™": Minimal pollutant emissions in accordance with US EPA emission standards
  • Tier 4 Final Kubota diesel engine
  • Energy saving Sigma Profile™ airend
  • Easy to operate Sigma Control Smart electronic controller
  • Extra large capacity fuel tank provides up to 10 full hours of operation
  • Three 3/4" Chicago style fittings and one 1-1/2" NPT connection port
  • Separate 4 micron air inlet filters protect compressor and engine
  • Easy access with gullwing doors
  • Standard heavy duty bumpers and lighting kit
  • Rigid tow bar with height adjustable hitch
  • Optional aftercooler package

Air Treatment

Air Treatment

 N/A Cool, clean compressed air
  • The compressed air is cooled to 45°F above ambient temperature.
  • With the compressed air cooler installed at an angle, the accumulated condensate is easily drained away.
  • The hot exhaust gasses from the motor are also used to aid condensate evaporation. This prevents condensate accumulation from causing the cooler to freeze up.
  • The microfilter provides additional oil filtration to ensure a high quality of compressed air. The included differential pressure gauge lets you see the filter's status at a glance.
Additional air treatment components should be installed downstream of the aftercooler and centrifugal separator  in order to achieve a specified compressed air quality class.

Additional Information

N/A User-friendly
The M82 offers a wide array of features that make it very user-friendly. Units come standard with a Sigma Control Smart electronic controller with protective metal cover. Another important feature is the large 37 gallon fuel tank that provides extended operation - up to 10 full hours! The lifting eye and height adjustable hitch with rigid tow bar also make transporting the M82 easy. The enclosure is super-soundproofed and provides extremely low decibel levels. Maximum sound level measured at 23 feet is 76 db(A).

Efficient and Reliable
A heavy-duty 4-cylinder engine direct coupled to our energy saving Sigma Profile™ airend produces more air with less horsepower. A high capacity cold start battery ensures reliable operation even under extreme conditions.

The M82's rugged steel cabinet is powder-coated and built to take the harshest conditions while protecting the machine from dirt, water, and other contaminants. The engine and compressor have separate inlet filters with maintenance indicators. This protection, combined with a high efficiency cooling system, allows the unit to operate in ambient temperatures up to 122 ºF

Optional 5 year warranty
To protect your investment, all of our Mobilair compressors are available with an optional 5 year warranty on the compressor airend.

Note

Note

 N/A Specifications subject to change without notice.

Length includes tow bar.
