Versatile

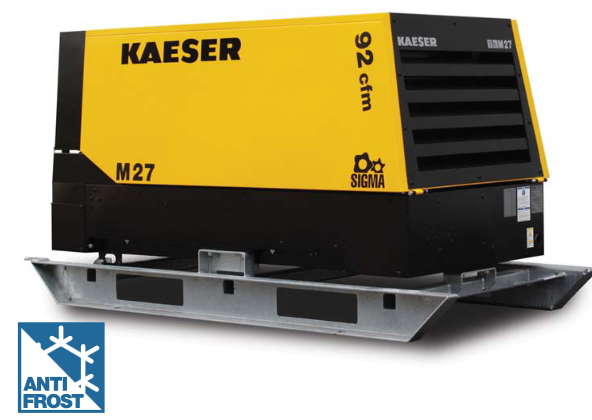

The Mobilair™ M27 Utility rotary screw compressor is designed for transverse mounting on service vehicles. It delivers 92 cfm at 100 psig and is ideal for a wide range of applications including sand/shot blasting, demolition, fence post driving, irrigation system maintenance and monument engraving.
Unit of Measure

Financing

Approve Payments

 N/A Finance with Approve Payments

Specifications

Brands

 N/A Kaeser Compressors

Model

 N/A M27 Utility

Free Air Delivery at 100 Pound Per Square Inch Gauge (psig) Pressure

 N/A 92 ft³/min

Maximum Sound Level at 23 Feet (ft)

 N/A 76 dBA

Flow Rate

 N/A 92 ft³/min

Working Pressure

 N/A 100 psig

Warranty

 N/A 5 years

Diesel Engine

Make

 N/A Kubota D1105-B

Power at Full Load

 N/A 21 hp

Full Load Speed

 N/A 2850 rpm

Off Load Running Speed

 N/A 2100 rpm

Package

Fuel Tank Capacity

 N/A 10.6 gal

Outlets

 N/A 2 x 3/4 in

Weight

 N/A 1267 lb

Dimensions

Length

 N/A 80 in

Width

 N/A 39-3/16 in

Height

 N/A 42-1/2 in

Keeping it Simple: Transport, Handling, and Maintenance

Keeping it Simple: Transport, Handling, and Maintenance

 N/A
  • Easy-load design
    The compressor can be manually lifted via four ergonomically designed hand grips, for easy loading into a truck.
  • Outstanding maneuverability
    • Compact design
    • Low center of gravity
    • Large pneumatic tires
    • Long, foldable push handle makes the unit easy to maneuver
  • Easy maintenance is standard
    With Kaeser, ease of operation and accessibility of all maintenance points is always a top priority. This not only minimizes maintenance costs, but also ensures maximum machine uptime.

Optional Compressed Air Aftercooler

Optional Compressed Air Aftercooler

 N/A Cool, condensate-free compressed air

The M15 and M17 models can also be operated with an external compressed air aftercooler. Units can be delivered from the factory equipped with:
  • 12 V electrical connection to supply power for the aftercooler fan.
  • Condensate discharge connection.
  • Support frame with compressed air aftercooler: The frame (weight: 33 lb.) is equipped with fixed connections for compressed air, fan power supply, and condensate discharge. Simply connect the compressor and you're ready to go.

Standard Features

Standard Features

 N/A
  • Sigma Profile™ rotary screw airend produces more air per gallon of fuel
  • Meets Tier 4 EPA emissions standards
  • Energy efficient direct drive
  • Large fuel tank for 8 hours of continuous operation
  • Powder coated steel enclosure with soundproofing and vibration isolation
  • High capacity cold start battery
  • Patented anti-frost control prevents freeze-up
  • Highly efficient cooling system

Advantages

Advantages

 N/A
  • Onsite in a snap:
    With a lightweight and compact design, our small portable compressors are easy to transport.
  • Easy to operate:
    User-friendly controls for simple operation without a steep learning curve.
  • Durable and quiet operation:
    Roto-molded polyethylene (PE) enclosures provide optimal noise and impact protection.

Additional Information

N/A Efficient and Reliable
A heavy-duty 3-cylinder Kubota diesel engine direct coupled to our energy saving Sigma Profile airend produces more air per gallon of fuel. The high capacity cold start battery ensures reliable operation even under extreme conditions. The M27 Utility's rugged, powder-coated steel cabinet is mounted on a galvanized frame and built to protect the machine from dirt, water, and other contaminants. The engine and compressor have separate inlet filters with maintenance indicators. This protection, combined with a high efficiency cooling system, allows the unit to operate in ambient temperatures up to 120 ºF.

Convenient The M27 Utility is very compact. It has both long and short side forklift slots as well as a single-point lifting hook for easy mounting/dismounting. The two 3/4" hose connections and controls are curbside for safety. The instrument panel features a full range of indicators, including hour meter, air pressure, fuel, and discharge temperature gauges. The canopy provides full access to the tool box and maintenance points. Sound and vibration isolation ensure smooth, quiet running for work crews and neighbors. Another important feature is the large 10.6 gallon fuel tank that provides extended operation - up to 8 full hours!.

Note

Note

 N/A Specifications subject to change without notice.
