Rough, Dependable, and Quiet

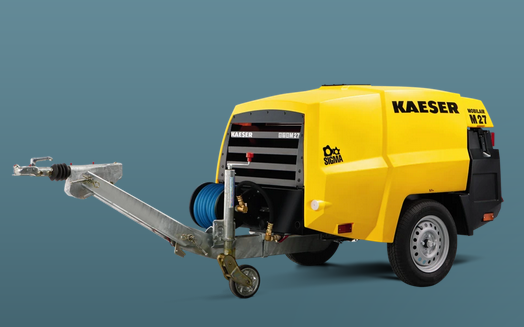

The Mobilair™ M27 is a versatile portable screw compressor that offers heavy-duty performance in a lightweight package. It is well suited for many applications including sand-blasting, pavement breaking, and general air tool use. These units are built to meet the demands of rental houses, repair trucks, and railroad applications.
Unit of Measure

Financing

Approve Payments

 N/A Finance with Approve Payments

Specifications

Brands

 N/A Kaeser Compressors

Model

 N/A M27 Skid Mount

Free Air Delivery at 100 Pound Per Square Inch Gauge (psig) Pressure

 N/A 92 ft³/min

Maximum Sound Level at 23 Feet (ft)

 N/A 76 dBA

Flow Rate

 N/A 92 ft³/min

Working Pressure

 N/A 100 psig

Warranty

 N/A 5 years

Diesel Engine

Make

 N/A Kubota D1105-B

Power at Full Load

 N/A 21 hp

Full Load Speed

 N/A 2850 rpm

Off Load Running Speed

 N/A 2100 rpm

Package

Fuel Tank Capacity

 N/A 10.6 gal

Outlets

 N/A 2 x 3/4 in

Weight

 N/A 1267 lb

Dimensions

Length

 N/A 80 in

Width

 N/A 39-3/16 in

Height

 N/A 42-5/16 in

Keeping it Simple: Transport, Handling, and Maintenance

Keeping it Simple: Transport, Handling, and Maintenance

 N/A
  • Easy-load design
    The compressor can be manually lifted via four ergonomically designed hand grips, for easy loading into a truck.
  • Outstanding maneuverability
    • Compact design
    • Low center of gravity
    • Large pneumatic tires
    • Long, foldable push handle makes the unit easy to maneuver
  • Easy maintenance is standard
    With Kaeser, ease of operation and accessibility of all maintenance points is always a top priority. This not only minimizes maintenance costs, but also ensures maximum machine uptime.

Optional Compressed Air Aftercooler

Optional Compressed Air Aftercooler

 N/A Cool, condensate-free compressed air

The M15 and M17 models can also be operated with an external compressed air aftercooler. Units can be delivered from the factory equipped with:
  • 12 V electrical connection to supply power for the aftercooler fan.
  • Condensate discharge connection.
  • Support frame with compressed air aftercooler: The frame (weight: 33 lb.) is equipped with fixed connections for compressed air, fan power supply, and condensate discharge. Simply connect the compressor and you're ready to go.

Standard Features

Standard Features

 N/A
  • Direct drive rotary screw airend: Sigma Profile produces more air with less fuel consumption.
  • Rotomolded polymer canopy is scratch and dent resistant.
  • 1 micron, 2-stage, compressor inlet filter with maintenance indicator.
  • 10 micron engine air filter with maintenance indicator.
  • Exclusive anti-frost valve maintains optimum operating temperature and prevents tool freeze up.
  • Heavy duty, 3-cylinder Kubota diesel engine complies with Tier 4 emissions standards.
  • Tool box for convenient storage.
  • Highly efficient cooling system.
  • Modulation control
  • Lighting package

Optional Features

Optional Features

 N/A
  • Five year airend warranty.
  • Skid mount

Advantages

Advantages

 N/A
  • Onsite in a snap:
    With a lightweight and compact design, our small portable compressors are easy to transport.
  • Easy to operate:
    User-friendly controls for simple operation without a steep learning curve.
  • Durable and quiet operation:
    Roto-molded polyethylene (PE) enclosures provide optimal noise and impact protection.
  • Contemporary, compact design
  • Lightweight, easily maneuverable
  • One piece rotomolded canopy
  • Easily accessible control panel
  • Reflector and lighting package
  • Torsion bar suspension
  • Direct drive Sigma rotary screw airend
  • Transparent fuel tank
  • Thermostatically controlled combination valve
  • Heavy duty inlet filter

Additional Information

N/A Both the double-walled, rotomolded polyethylene canopy and the solid steel flooring protect the motor, airend, and critical components from dirt, water, and other contaminants. Rugged construction combined with extensive engineering allow the M27 to retain its value year after year. The canopy is also designed to provide extremely low noise levels. Maximum sound level measured at 23 ft. is 76 db(A).

The M27 also features Kaeser's patent-pending anti-frost control feature. This thermostatically controlled valve automatically controls the compressed air temperature in relation to the current ambient temperature, which protects construction tools from freezing up, increases tool life, and extends compressor fluid life.

Note

Note

 N/A Specifications subject to change without notice.
